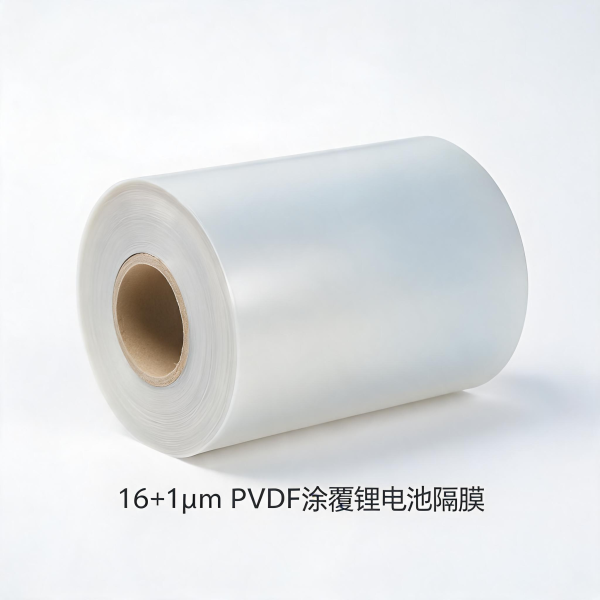

PVDF Coated Separator 16+1μm

Product Overview

The PVDF Coated Separator 16+1μm from Huizhou BestGemo New Energy is an advanced membrane solution engineered for high-rigidity and long-cycle lithium cells. This separator features a precise polyvinylidene fluoride (PVDF) coating applied to a 16μm base film, with an additional 1μm functional layer, creating a robust interface between the separator and the electrode. The thicker base film provides enhanced mechanical strength and dimensional stability, making it particularly suitable for large-format cells or applications where internal stress management is critical. By improving electrode adhesion and electrolyte wettability, this product directly addresses common performance bottlenecks in modern lithium battery design, offering manufacturers a reliable component for demanding energy storage applications.

Constructed in the 16+1μm configuration, this PVDF coated separator is optimized for cells that require superior mechanical integrity and long-term electrochemical stability. The coating bonds firmly to the electrode surface and promotes rapid, uniform electrolyte absorption, which is essential for reducing internal resistance and maintaining consistent ion transport over extended cycling. This product is suitable for battery producers seeking a drop-in separator solution that improves processability and final cell reliability without requiring significant modifications to existing assembly lines.

Key Features

• Enhanced Electrode Adhesion: The PVDF coating provides a strong bond between the separator and electrode layers, helping maintain electrode stack integrity during charge-discharge cycles and reducing the risk of delamination in high-rigidity cell designs.
• Superior Electrolyte Wettability: The porous PVDF layer facilitates faster and more thorough electrolyte uptake compared to standard polyolefin separators, ensuring consistent ionic conductivity across the entire electrode area.
• Improved Cycle Life: By stabilizing the electrode-separator interface and promoting uniform electrolyte distribution, this separator contributes to reduced capacity fade and extended operational lifespan in long-cycle lithium cells.
• Controlled Porosity: With a porosity range of 38% to 40%, the separator offers an optimal balance between ionic permeability and mechanical strength, supporting efficient lithium-ion transport while maintaining physical robustness.
• Customizable Peel Strength: Peel strength can be tailored to specific requirements (N/m) to match different electrode chemistries and cell assembly processes, allowing for integration flexibility across a range of battery formats.
• Thicker Base Film for Enhanced Stability: The 16μm base film provides increased mechanical support and thermal dimensional stability, making it ideal for larger cells or applications where internal stress and heat dissipation are concerns.

Technical Specifications

Applications

This PVDF coated separator is specifically designed for lithium batteries that demand high structural rigidity and prolonged service life. The 16+1μm thickness is particularly well-suited for larger-format cells, such as those used in electric vehicles, grid storage, and industrial applications, where mechanical robustness and thermal stability are critical. The product performs reliably in both prismatic and cylindrical cell formats where electrode adhesion directly impacts safety and performance.

• High-capacity energy storage cells for grid backup or renewable integration.
• Long-cycle power batteries for electric vehicles and industrial equipment, especially those requiring thicker separators for enhanced safety.
• Portable energy storage systems requiring stable discharge characteristics.
• Specialty lithium cells for aerospace, marine, or high-vibration applications.
• Custom battery packs where enhanced electrode bonding prevents internal short circuits over extended use.

Quality Assurance

• Strict quality management is implemented throughout every stage of production, from raw material receiving to final packaging, ensuring consistency in thickness, porosity, and coating uniformity.
• Each batch undergoes full inspection prior to shipment, including verification of dimensional specifications and physical properties, so that only conforming product reaches your facility.
• Sampling and testing protocols are aligned with the reference parameters supplied, allowing for traceable accuracy in porosity and peel strength reporting.
• Technical support is available to assist with integration questions, and product samples can be provided upon request for evaluation under your specific cell manufacturing conditions.

OEM/ODM Customization

Huizhou BestGemo New Energy supports OEM and ODM projects involving the PVDF coated separator. We can adjust the peel strength specification to match your electrode coating formulation and assembly method, and we work with you to confirm the appropriate thickness option for your cell design. For the 16+1μm variant, we can also discuss adjustments to the base film thickness or coating weight if your application requires a different balance of mechanical support and ionic conductivity. Custom roll dimensions, core sizes, and packaging formats are also available upon request to align with your production line requirements. Our engineering team is prepared to discuss your application details and provide tailored guidance without obligating you to a minimum order commitment.
